起源の場所: | 深セン、中国 |
ブランド名: | SCED |
証明: | UL, CE |
モデル番号: | TR-6N |
最小注文数量: | 500 |
---|---|
価格: | Get latest price |
パッケージの詳細: | 標準的な輸出カートン |
受渡し時間: | 7-20 営業日 |
支払条件: | T/T |
供給の能力: | 月例 1KK 棒それぞれ |
ワイヤー入口: | 直角ワイヤー入口 | 末端の幅: | 8.2 mm |
---|---|---|---|
タイプ: | レール敷のターミナル ブロック、電気ターミナル ブロック、ターミナル ブロックのコネクター | ワイヤー範囲: | 26-8 |
定格電圧: | 600v | 定格電流: | 50A |
色: | ブラック | アプリケーション: | 電源、企業制御、オートメーション、柵交通機関、コミュニケーション、電力、Elev |
ハイライト: | 柵の台紙のターミナル ブロック,アース端子のブロック |

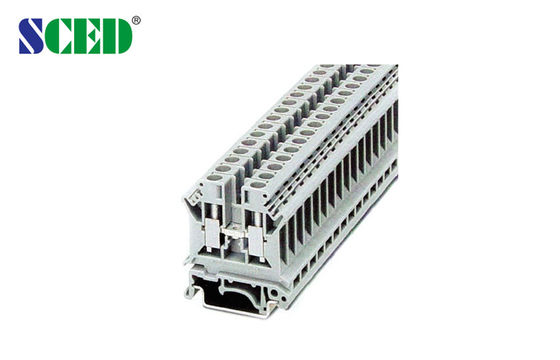

600V 50A Din Rail Mounted Terminal Blocks 8.2mm Feed Through Connector for Electric
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter
Description Color |
Type |
Terminal Grey |
TR-6N |
End Cover Grey |
D-TR-3/16 |
Fixed Bridge |
FBI 10-8 Imax: 57A |
Insertion Bridge |
EB 10-8 Imax: 57A |
Separating Plate |
TS-K |
Partition Plate |
ATP-TR |
Zack Strip White |
ZB8 |
Screwdriver |
SZS 1.0×4.0 |
Rail Material |
aluminum |
Dimensions mm |
8.2/42.5/2 |
Height (U35: 7.5/U35: 15G 32) mm |
47/54.5/52 |
Screw / Torque Nm |
M4 / 1.5-1.8 |
Stripping Length mm |
10 |
IEC Technical Data |
|
Max. Load Current / Cross Section A / mm2 |
57 / 10 |
Rated Surge Voltage / Contamination Class KV / - |
8 / 3 |
Surge Voltage Category |
Ⅲ |
Competitive Advantage:
Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

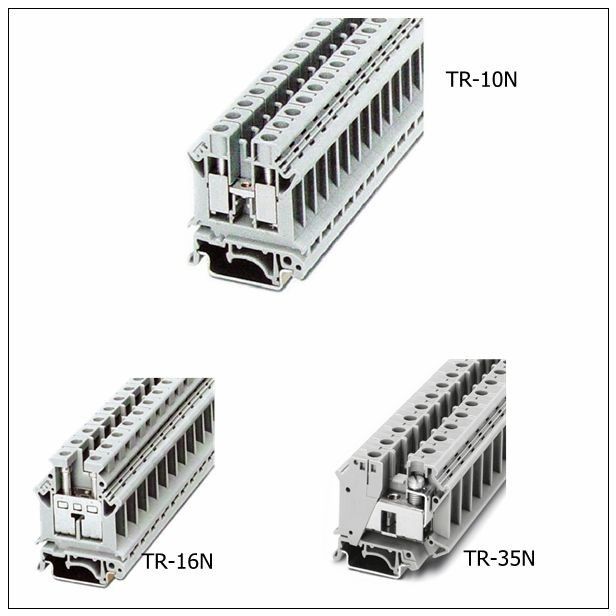

Drawing Photo
